Pilot H-2080 series - video review


The H-2080 video is available now.
Thank you for all the help and advice on this one.
:heart:

——————————-
(Orig post)
—————
I’m gathering my notes for my next video and had a few questions…

My notes say the H-208x was sold from 1981 - 2010. I am not sure where “2010” came from.

  • Do any of you have a catalog or some information I can share to substantiate that end date of 2010?
  • Was this sold only in Japan?
  • Does anyone have info of the variants? (Info I have is below)
  • Pictures of original packaging?
  • Any advertisements with them in it?
  • Is there Anything that I am missing that should be included?

My Notes:

Documented Model Numbers:
HH-200K
HH-200K-M-03 (H-2083)
HH-200K-M-05 (H-2085)

(M is for Mokume per catalog) Mokume in Japanese translates to “grain” (assuming wood)

Materials:
Grip: Maple Wood (per catalog)
Barrel: Aluminum
Brass clutch

Known Datapoints:
Release: October 1981 (100 Years of Pilot) (have image) (was original price ¥2,000?)
1988: Pilot catalog ¥2,000 (have image)
1995: Pilot catalog ¥2,000 (have image)

Known Variants:
Early and late versions are available. Not sure which is which:

  • Black vs. Brown text on barrel
  • shiny vs. matte finish on eraser cap (w/ size indicator).

Notes:

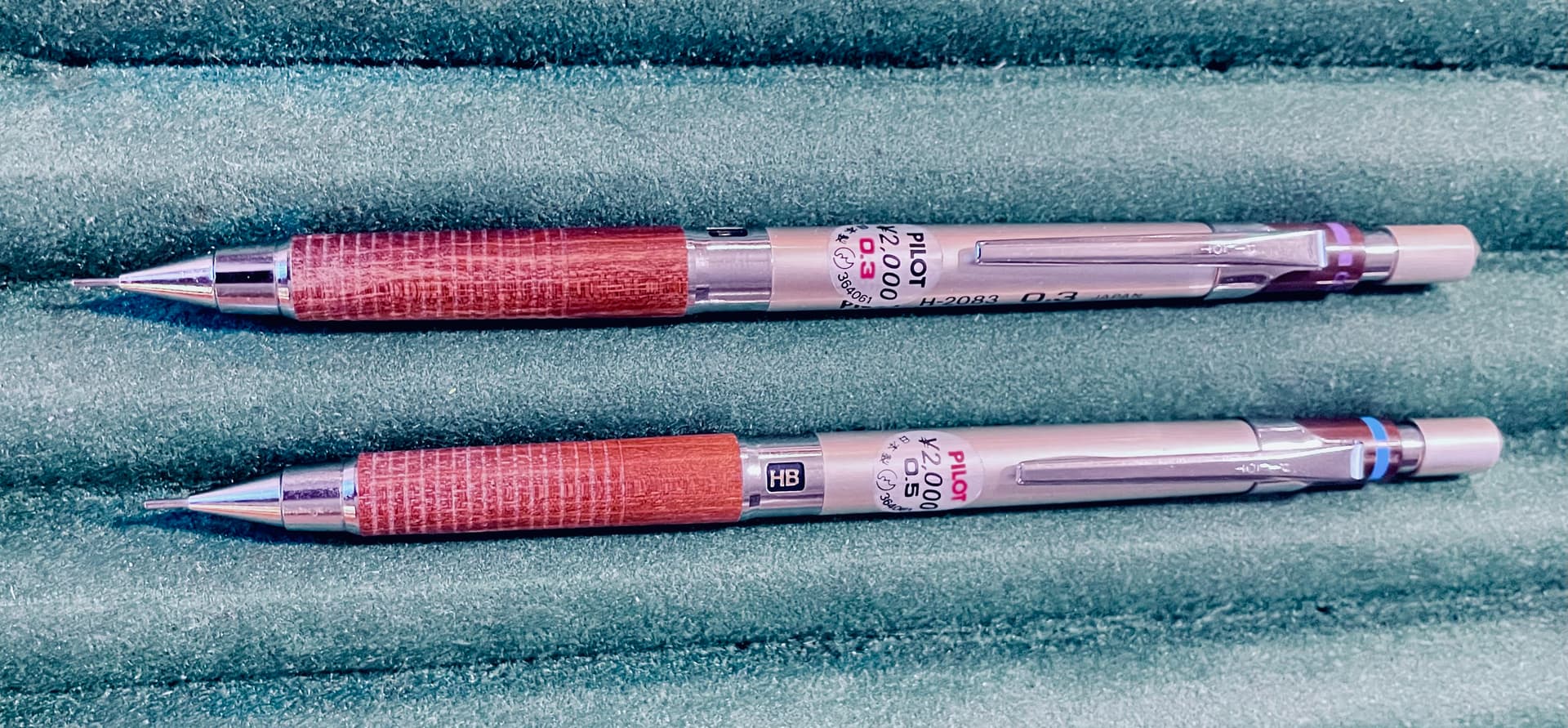

My 0.3 & 0.5 both have a matte finish on the eraser cap.
Neither has the size on the cap.
Both of mine appear to have brown text

Distribution:
Unknown - assume Japan only?

Grip Type: Wood, lattice

Misc. facts:
Removable pocket clip, color code (not ISO3098), eraser lead jam clearing rod.
Standard drafting package (4mm fixed sleeve, lead hardness indicator)

“Family” Members: H-58x, H-108x, H-208x (I have these/will be shown in video)

Similar competing products: Tombow Exta (I have one/will be shown in video)
My notes say Exta was sold from 1988 through the 1990s. (is this correct?)

Thanks!

7 Likes

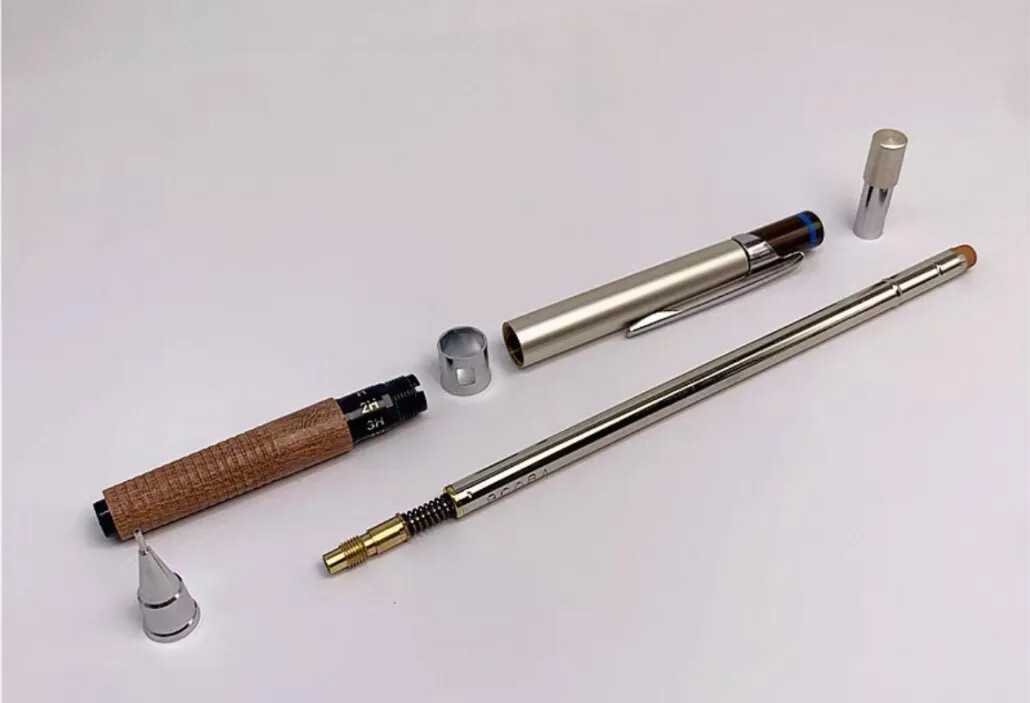

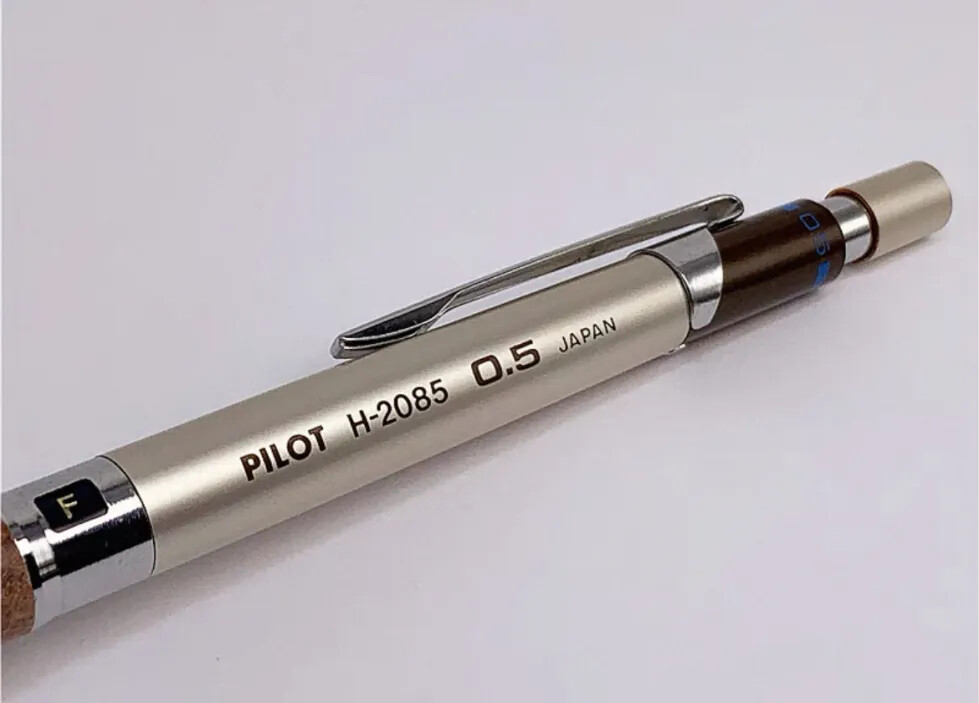

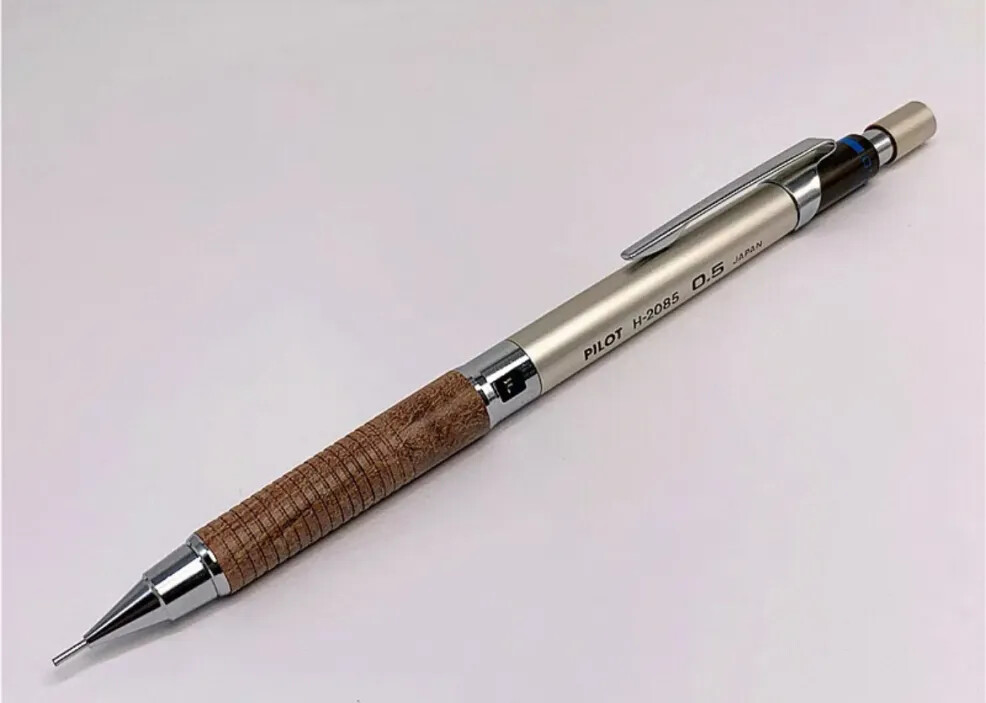

Regarding the variants, I have found a few pictures online with text that seems to be black and a matte eraser cap. Not sure how useful these picture are, but here thay are anyways.



4 Likes

No more inputs on dates but the wood type is more specific based on the 1982 catalog text:
Itaya Kaede / いたやかえで or 板谷楓*

The shaft is ‘アルマイト’ or anodized aluminum
*Pilot had used maple for their ‘Custom’ series from 1977.

The 88 catalog also says it is designed to be used with ‘long 90m/m leads’. The Europe 1980 catalog shows all Neo-X leads were standardized at 60mm.

95 catalog says the shaft is ‘aluminum dyed’. Could indicate the shift to a glossier finish.

4 Likes

EXTA wood-specific models dated from 1988 to 1995. But these were executive types, not drafting models.

4 Likes

Thank you @Neroaddict and @drifand

3 Likes

Do any other drafting pencils with wood accents come to mind?

There has been a “Xilo” by the Italian brand “Pigna”, but it had a relatively short sleeve, and i think it was more of a writing/notetaking pencil than a drafter; you can judge it here.

Maybe — maybe— the E.Roland 9118 (but I am not sure it is wood, or just a plastic material imitating woodgrain), and similar models.

There are, also, older MP’s where the body was made of wood, but I mostly recall clutch pencils (e.g. the A.W. Faber–Castell “Varius” 9025, or the Vemco Tec), rather than thin-lead knock-advance models.

1 Like

Thank you, @Leonov

I think the Faber Castell Vandyke model has a wood variant, I have one I’ll check mine
Staedtler Lumograph comes in wood
I have a Faber Walross in wood
The Dixon El Dorado
There are many….

2 Likes

Thanks - I’ll start looking for some pictures

S20 came out in 2003 or so…
I think Tikky had a ‘cork’ body model?

2 Likes

Thanks - for the video I was looking for similar/competing model that were contemporary to the H-2080.

Speaking of which - need some opinions: for the title should I call this series the “H-208x” or “H-2080”? or “HH-200K”?

what do you guys think?

Also - last question

Does anyone know if these are date codes?


My Guess:
*DIGIT-----value

  1. last digit of year
  2. Similar to Pentel for the month
  3. day of month tens place
  4. day of month ones place
  5. A or B - no idea what this is

on mine the 0.5 ends in “A” and the 0.3 ends in “B”. it also looks like the image @Neroaddict posted was 0.5 and also ended in “A”. I found similar code on other pencil from same time, but the A and B final digit was found on other sizes, so I don’t think its a size designation.

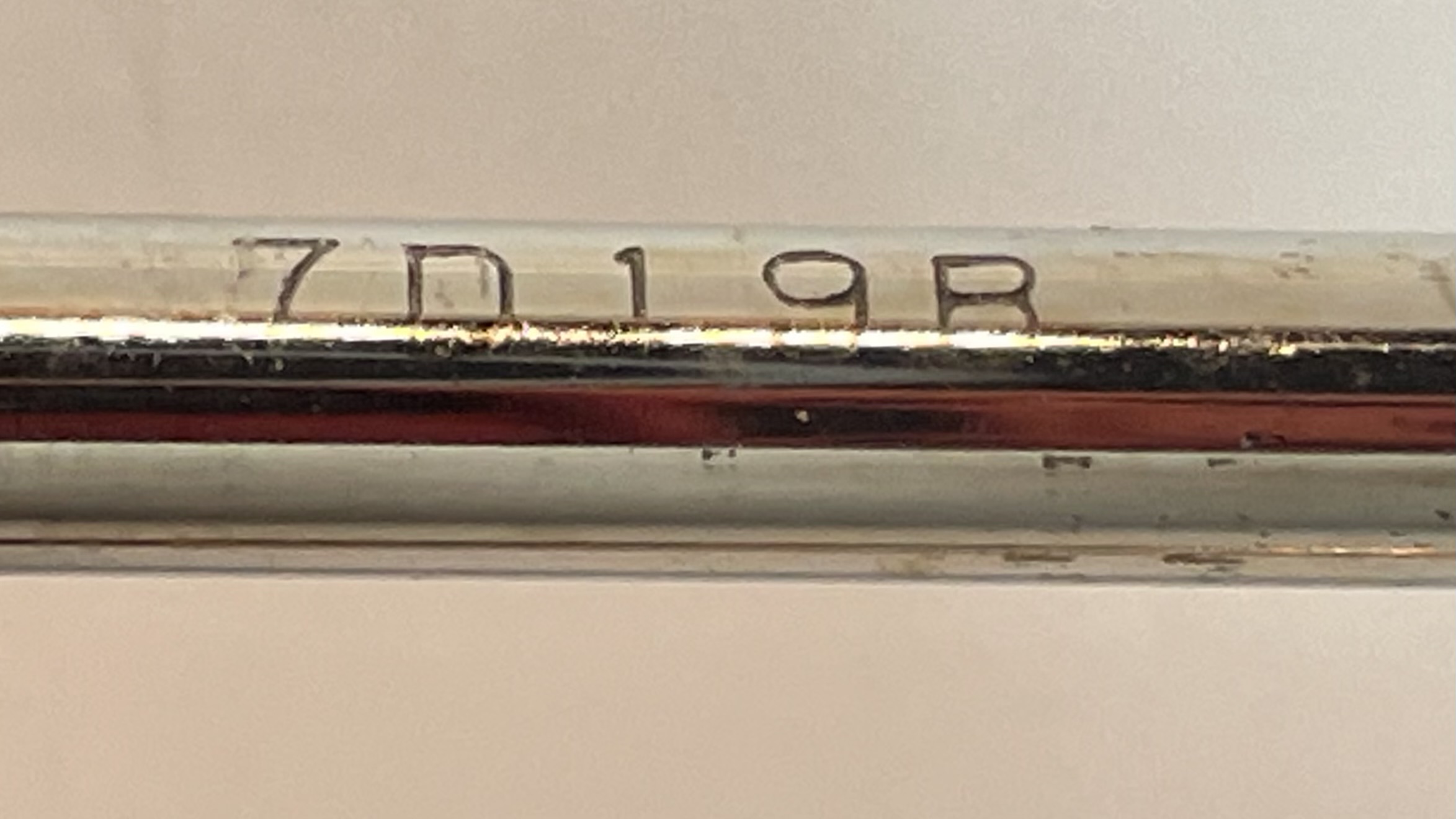

So in this case “7D19B” may be April 19, 1987"

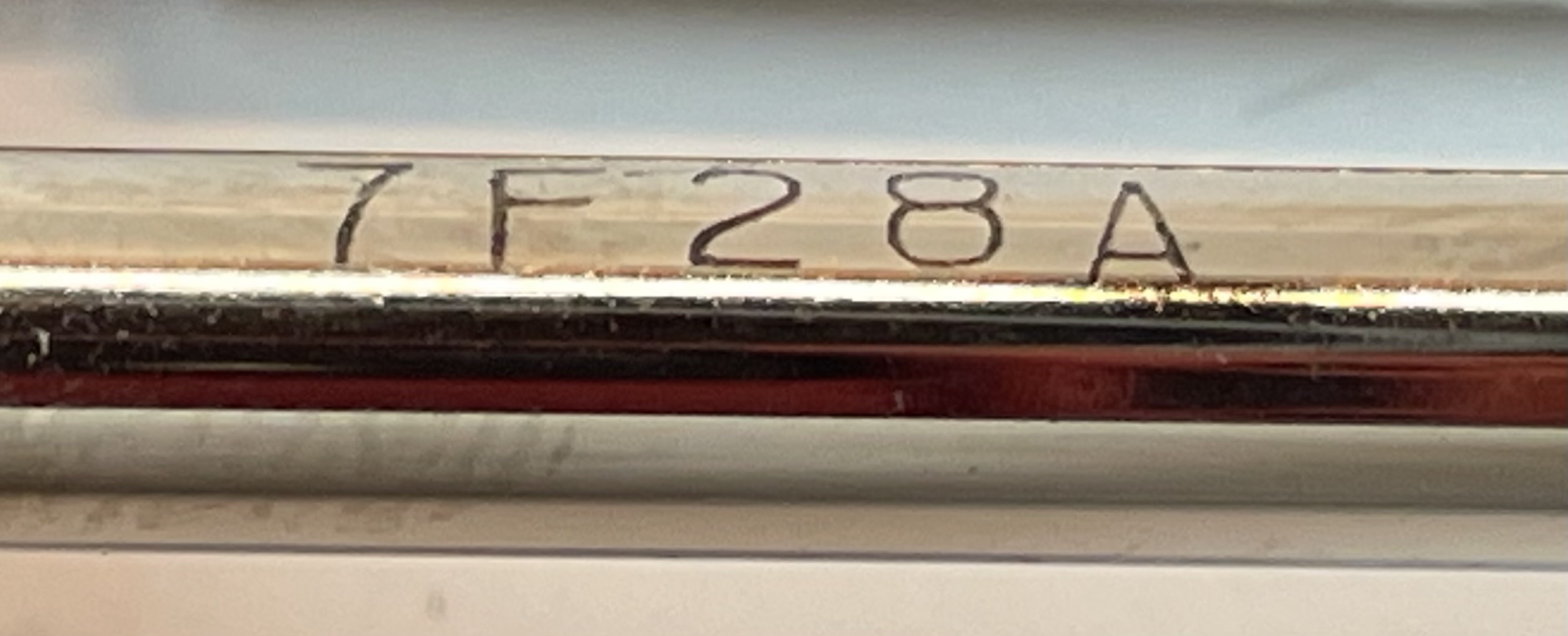

and “7F28A” may be June 28, 1987"

2 Likes

I think this is a pretty sound thesis. My brown text 2805 has the code 9G27A. So… 1989 July 27 (production line A?). I couldn’t detach my 2083 guts from the grip.

2 Likes

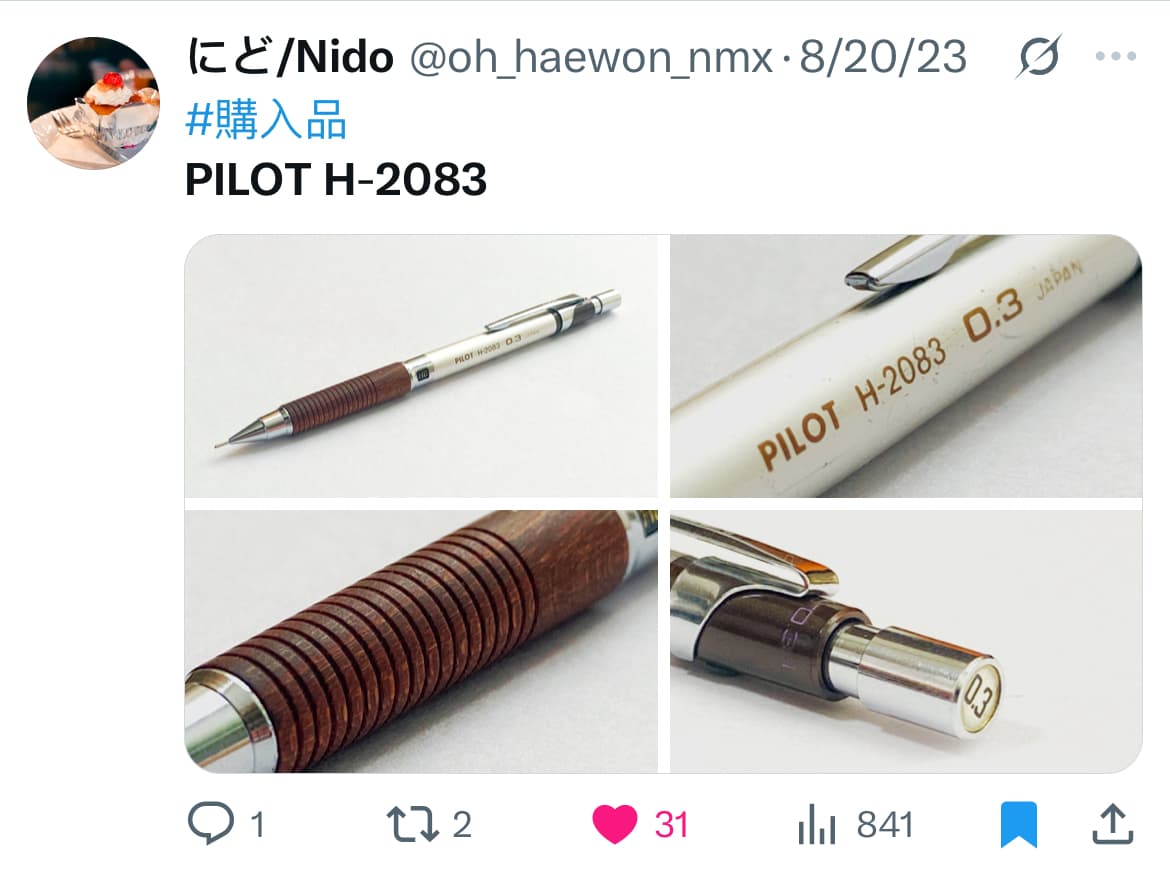

Photo: https://x.com/oh_haewon_nmx/status/1693142301172969720?s=46

EDIT:
This image is from a user on X. I was able to get their permission to use the image, However do any of you guys have a H-2083 or H-2085 that is the “shiny” version, like this one? if so, does it have a date code (or whatever that is) stamped on the lead tube?

1 Like

The matte cap is definitely a thing. Would love to know when this cap was used and when the cap changed.

1 Like

Mine are matte capped (89). No number in the finial.
Based on the theory that ‘improvements’ simplify production steps, the shiny caps are likely earlier models?

2 Likes

For the title, I suggest going with the more common and obvious name of H-208x.
The HH-200K is more like an internal SKU?

2 Likes

Which may also explain why you don’t see as many. I’m trying to find a picture I can use for the video.
Hopefully one will show up on Mercari or Yahoo so I can snag the image

1 Like

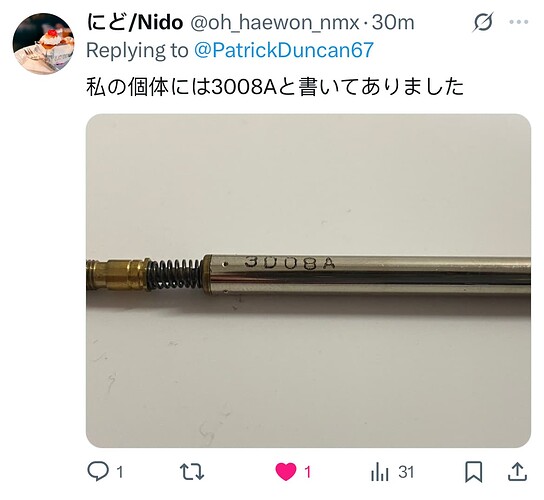

Nido got back to me with a code of “3008A” which may confirm the 1st digit as last digit of the year (1983 in this case) but kind of sinks my thesis on the what the other digits represent.

When I get some time I’ll record all my pilot dates and make a post to see if we can identify trends in the codes.

I’m also going to write Pilot tomorrow to see if they have any information on the codes.
