Reference: rOtring automatics *DRAFT*

Reference: rOtring automatics


Release Timeline

Model/Feature 1987 1990 1992 1994 Notes
Tikky automatic X Plastic body with red ring above the grip
Tikky automatic LS X Metal body with red rOtring above the grip
Tikky automatic LS (visual update) X Visually updated the red rOtring text to a red ring with “automatic LS” text in silver below it
rOtring 400 X Visually matches the box image with “automatic LS” below a red ring and internal mechanism is new
rOtring 400 (visual update) X Updated to say “rOtring 400” above the red ring
rOtring altro X Needs research

Tikky automatic / Tikky automatic LS

1987 – Initial release


rOtring first introduced their line of Tikky automatics in 1987 in Germany when they released both the all plastic Tikky automatic and the presumably more expensive all metal Tikky automatic LS. Even though the 1988 US and Swedish catalogs show them as new, typically German catalogs match or pre-date some countries by a year. So a 1987 debut in Germany and a 1988 everywhere else.

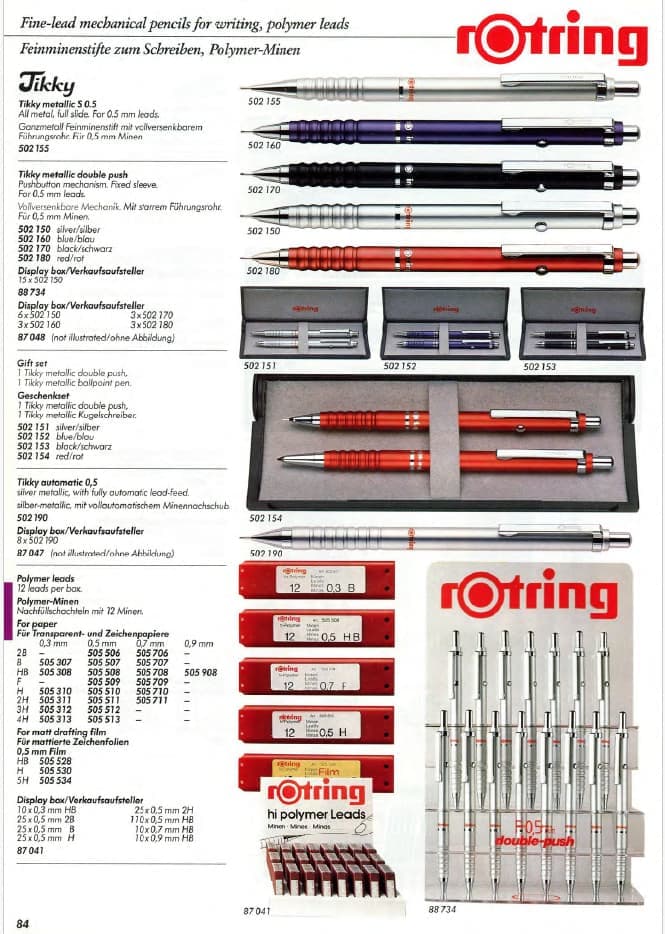

Sources: rOtring Museum, Paper and Digital Tikky history 1988 US catalog, Leadholder 1988 Swedish catalog

The first Tikky automatic LS version is only available in silver with a red rOtring logo on it, where the plastic version came in multiple colors and has just the red ring.

Note, the 1988 Swedish catalog refers to it as the Tikky metallic LS, however I think this is just an oversight and believe it was just a mixup with the other Tikky metallics as they’re all on that same page grouped together: Tikky metallic LS, metallic S, and metallic double push.

Neither catalog mentions the “LS” feature and have just short descriptions of the automatic function. The tip is a drafting style lead pipe. Model number is 502 190. Although it’s not mentioned in the catalog, the plastic version also has the LS feature.

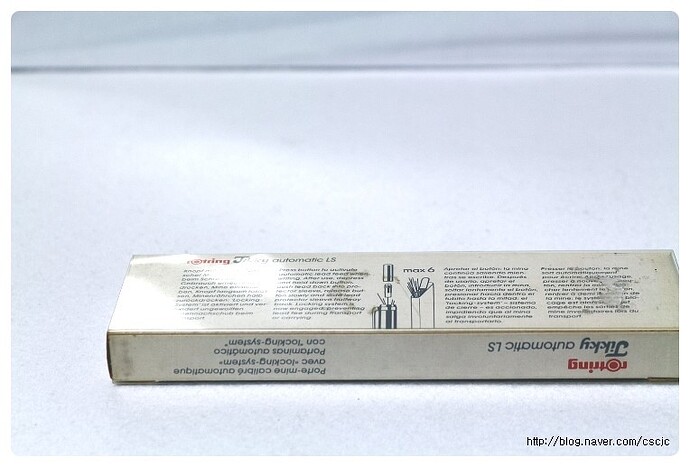

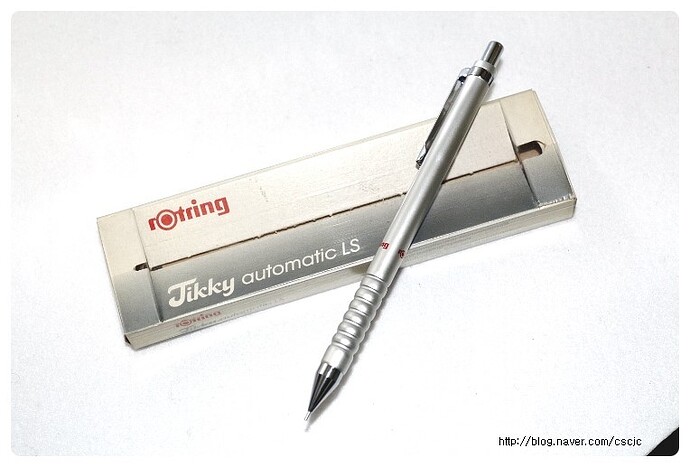

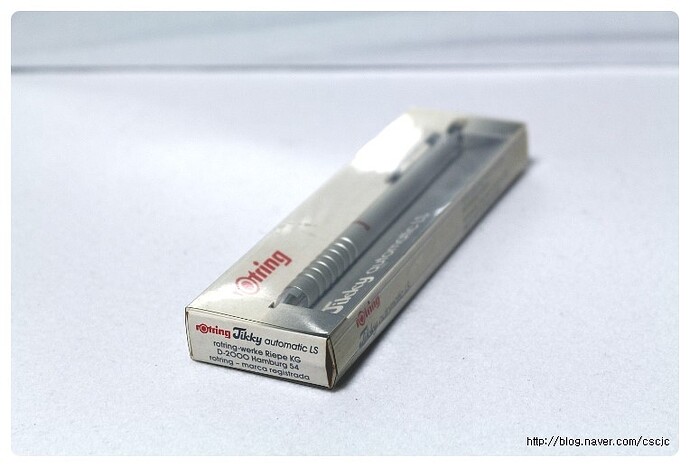

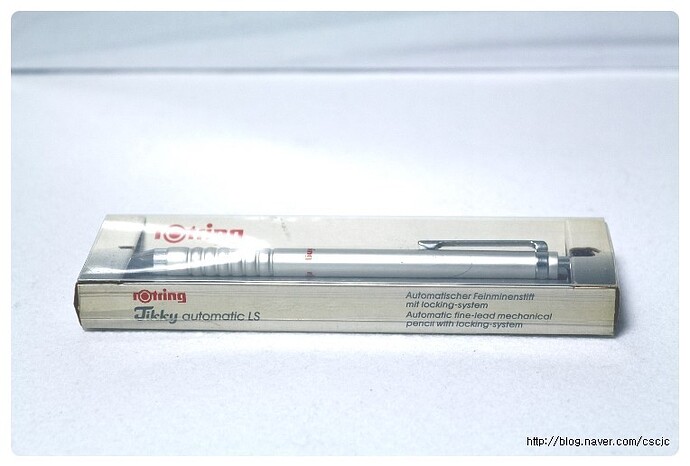

Tikky automatic LS Images, initial version:

Sources: Shade Space

1990 – Second version


A few years later they visually updated the LS to have a red ring and added “automatic LS” in silver text below it. The 1990 catalog actually describes the lead pipe retraction feature: “the “LS” locking system prevents undesired lead feed (when carrying in a pocket, for example)”. However in reality, it’s not very pocket safe or practical because it still has ~2mm of lead pipe sticking out when locked.

Source: Paper and Digital Tikky history, 1990 catalog page

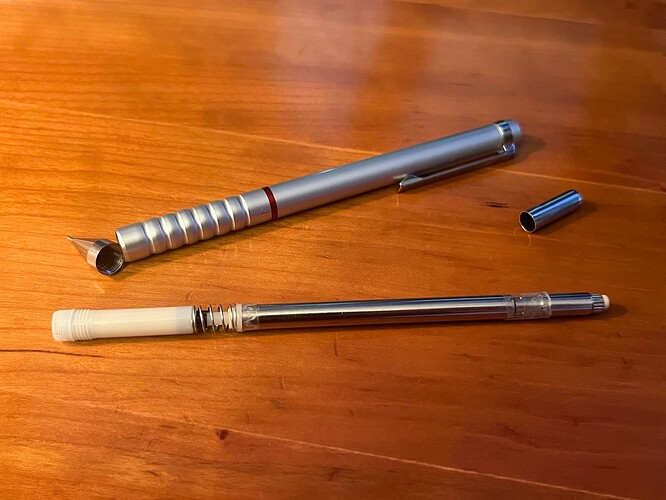

For some reason, they also added weight to the pencil by placing a thick metal pipe over the plastic lead tube. I’m not sure the amount of rattling you end up with is worth the weight gain. The only way I could make it quiet was to tape the metal tube in place.

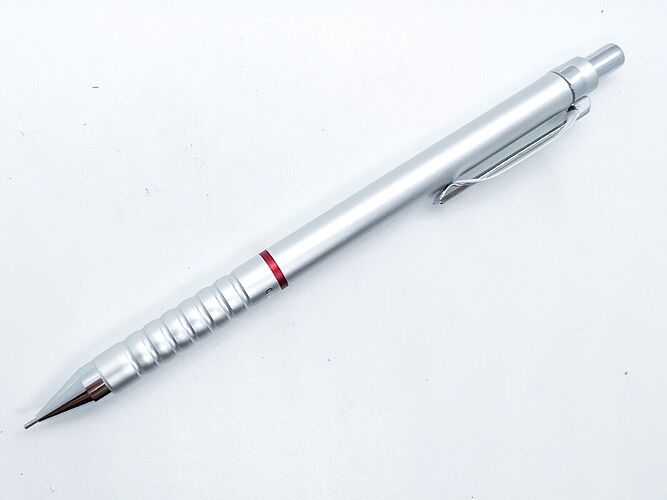

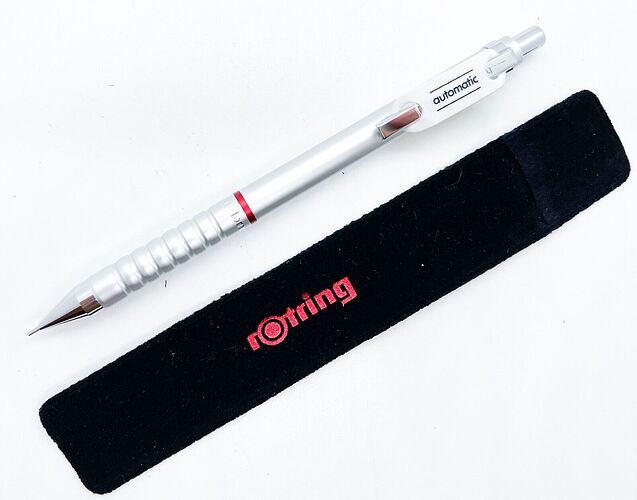

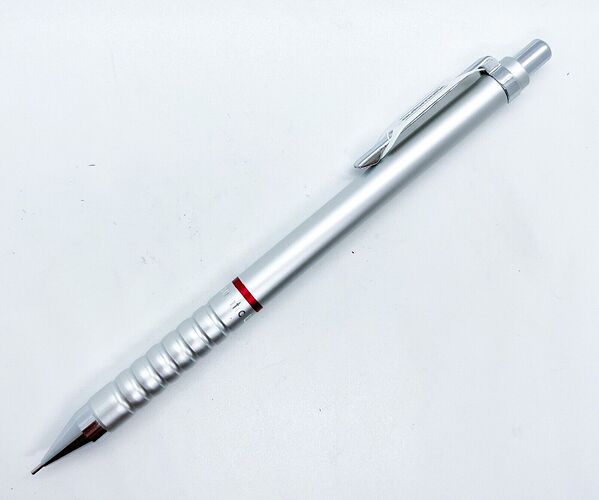

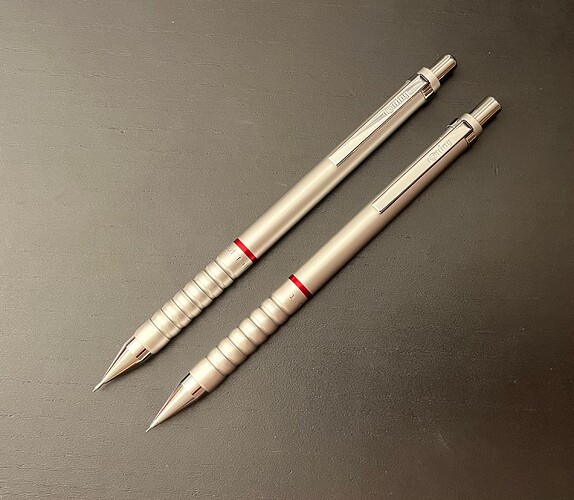

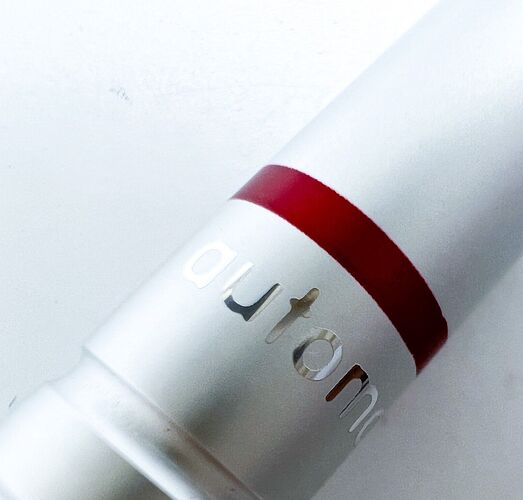

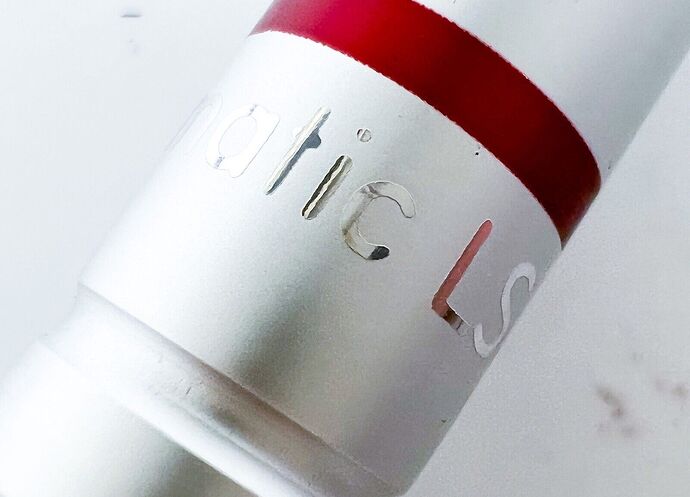

Images: Tikky automatic LS

Sources: Elton on eBay

Automatic Mechanism


As was fairly common at the time, rOtring chose to utilize another company’s automatic mechanism instead of developing their own. For the Tikky LS, they used the same mechanism as in the Uni A-Tech, Zebra and Niji X-10. I’m not certain of this mechanism’s source/history.

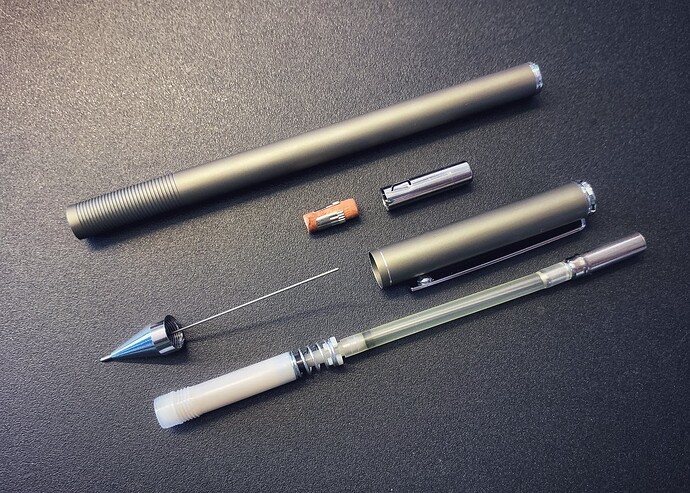

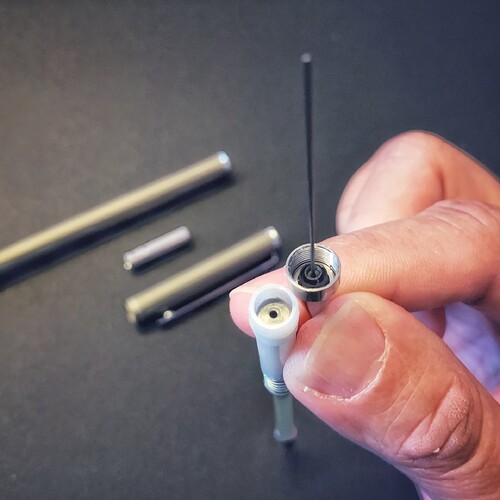

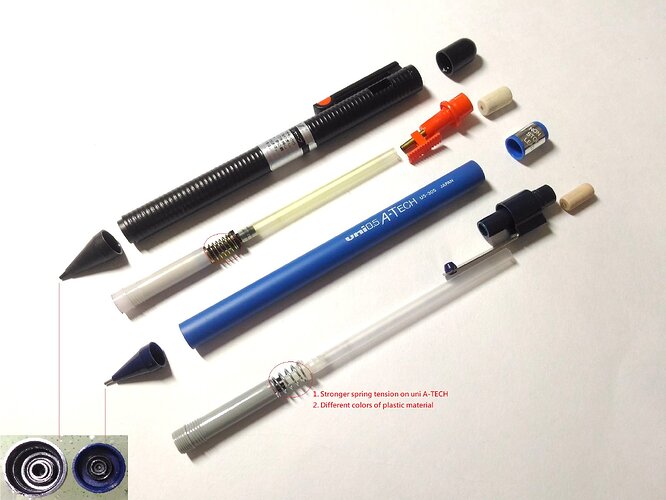

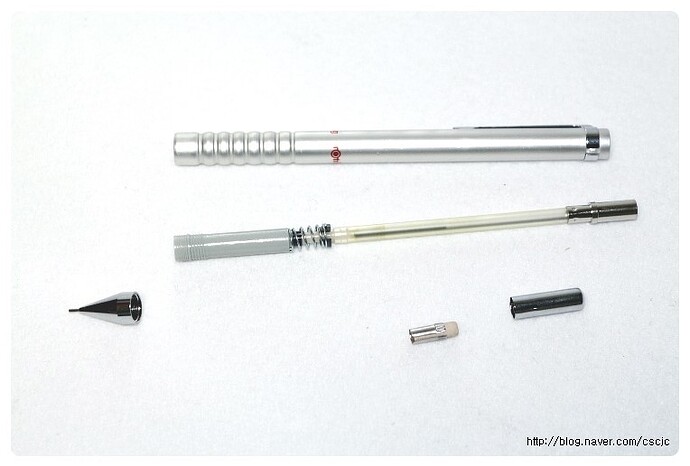

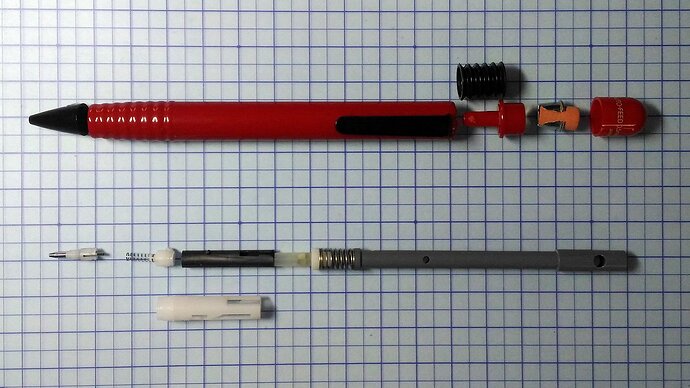

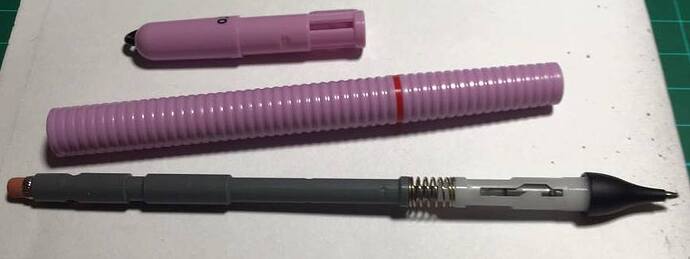

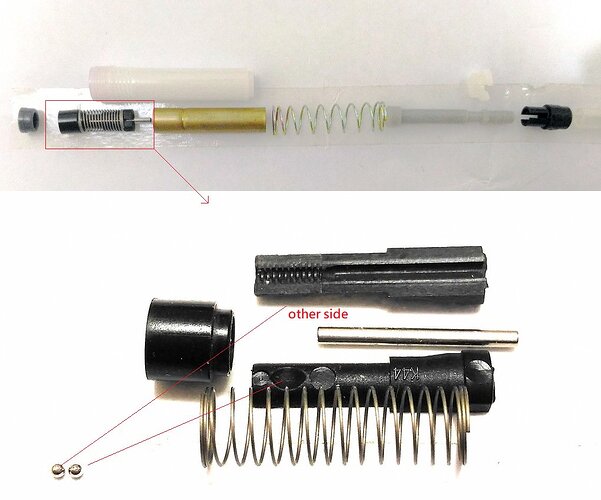

Images: Automatic Mechanism Internals

Sources: Kelvin Pang (@drifand), Hsi-Chi (@altis0510), Shade Space



rOtring 400 automatic

1992 – Initial Release


In 1992 rOtring changed things up and released the “feather-light” 400 series, which later became the Esprit line in 1996. Included in the new line, was the rOtring 400 automatic and it was available in either graphite or matte silver. It features a more writing style cone tip, similar to the alpha-matic, and it is also fully retractable. Model number is 502 191.

Sources: rOtring website, rOtring Museum’s history page

There are two body variants, and I’m not sure when they diverged:

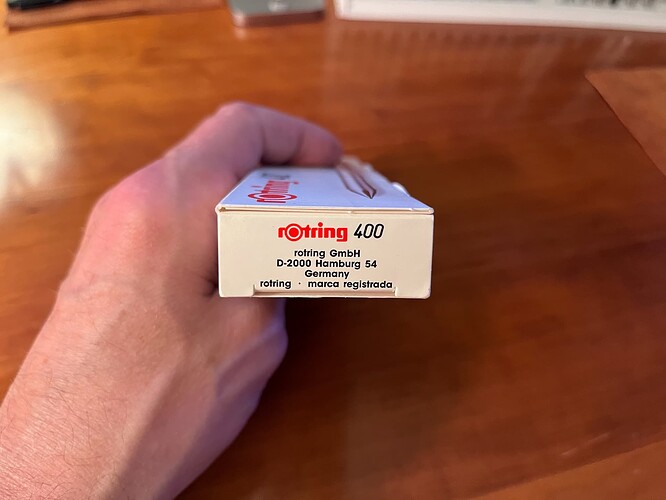

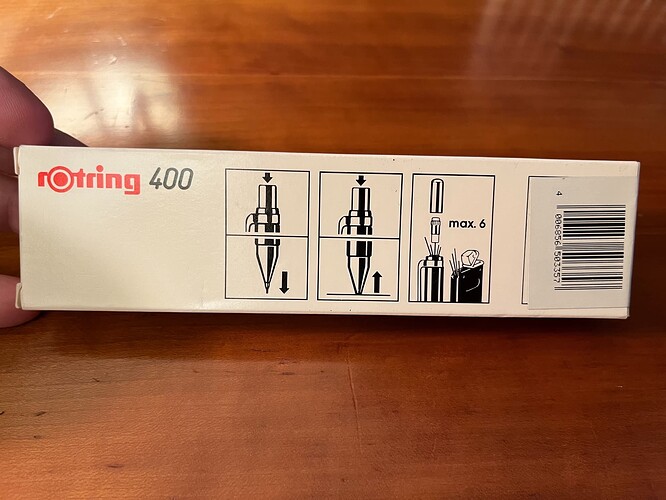

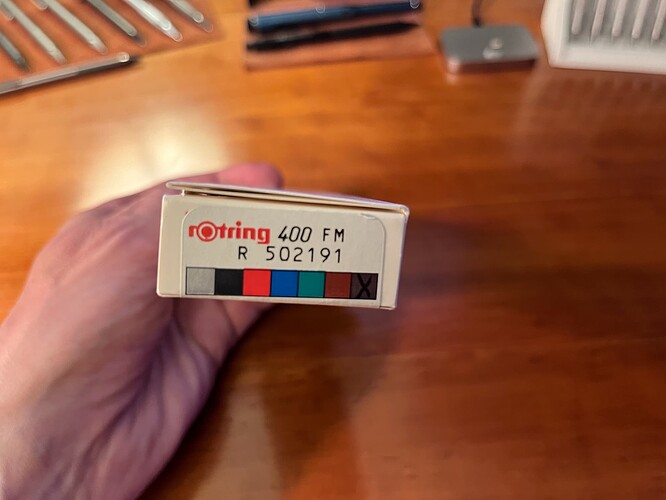

  • One has automatic LS and then a red ring above it and 0.5 embedded in a squared cap - this is likely an early version, as it’s what actually matches the image on the retail box.

  • The other more common version has a red ring above the grip and above that “r0tring 400” in silver text and 0.5 near the clip along with the more rounded cap.

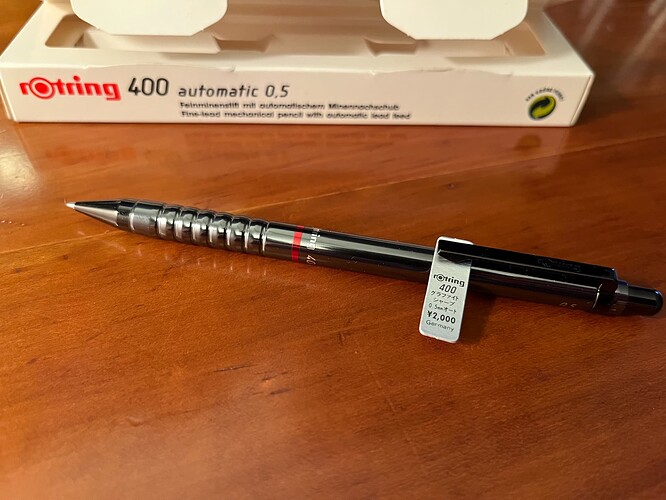

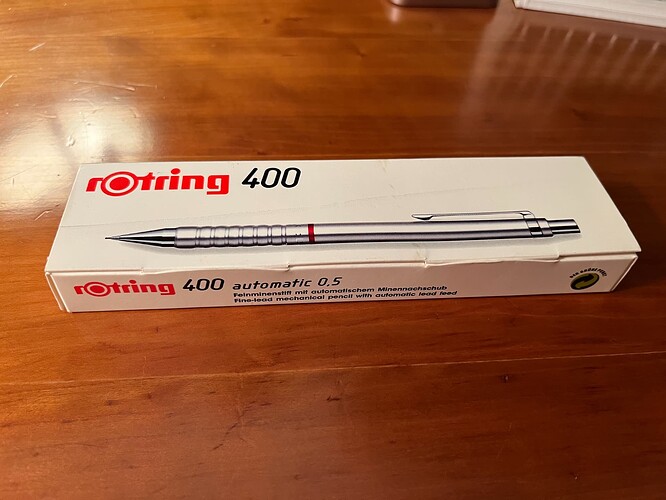

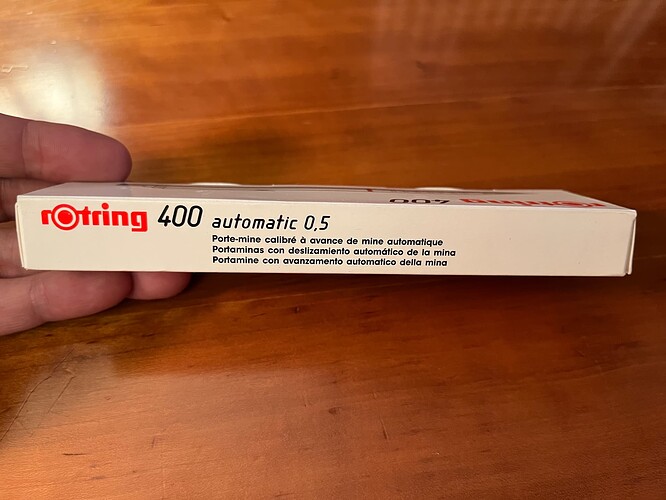

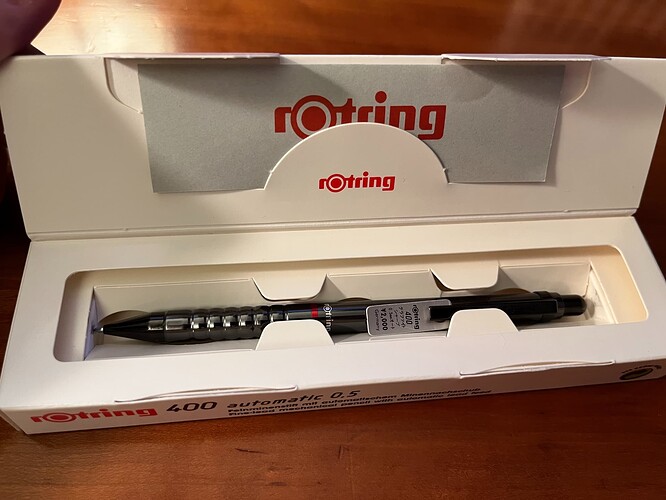

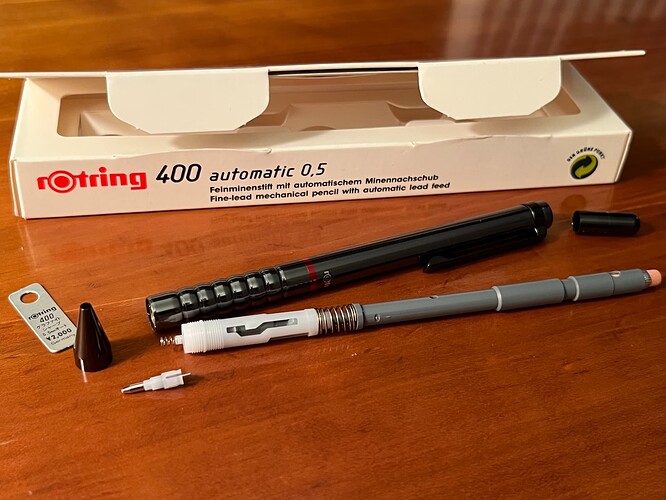

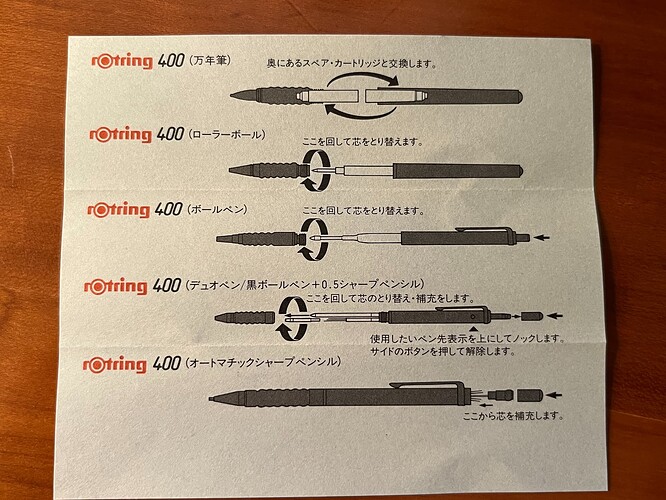

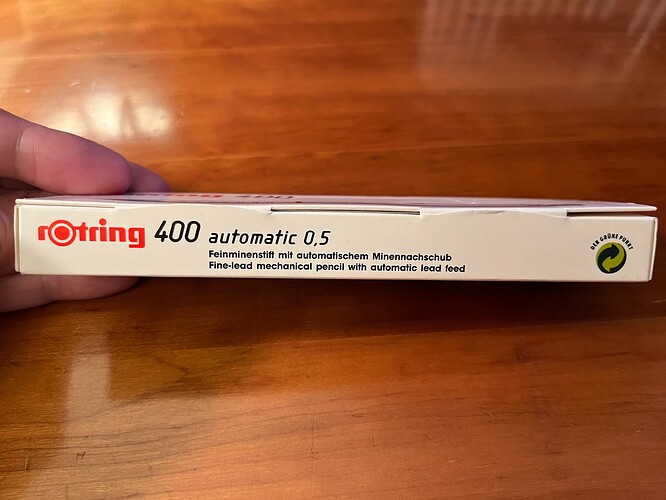

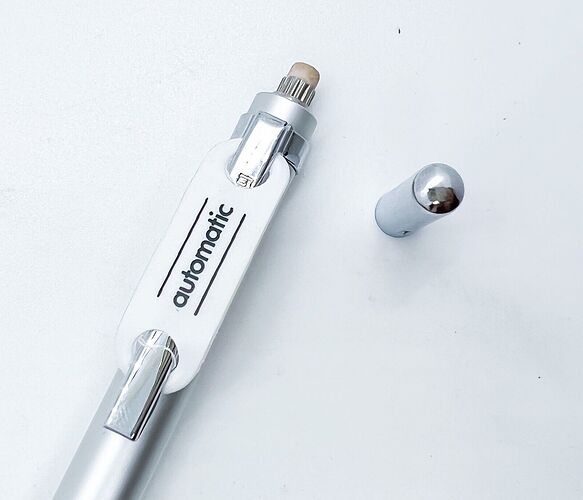

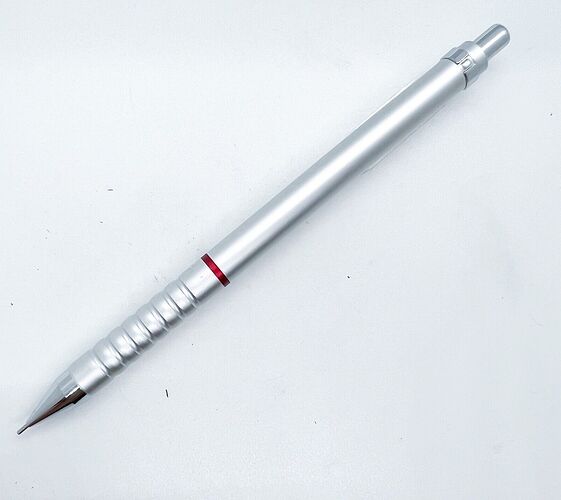

Images: rOtring 400 automatic

Automatic Mechanism

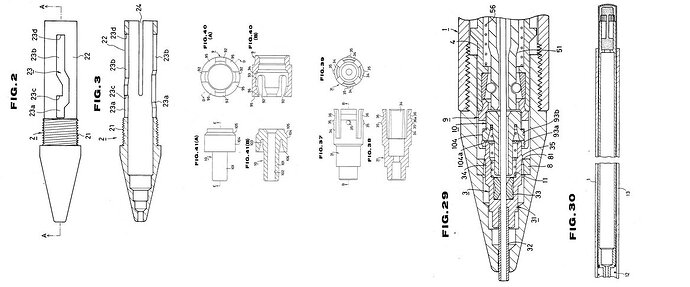

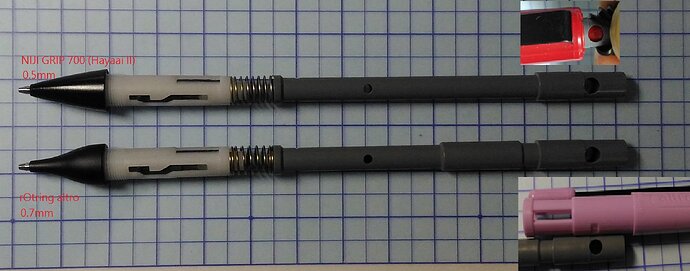

With the 400 automatic, rOtring chose to use the Kotobuki automatic mechanism, which is the same as in the Niji GRIP700, Platinum Hayaai II and the rOtring altro. Twitter user Hsi-Chi even found the patent for the mechanism (pdf).

Images: Kotobuki Automatic Mechanism

Sources: Hsi-Chi (@altis0510)



rOtring altro automatic

1992 – Initial Release


Need more research.



Disclaimer
As with a lot of historical mechanical pencil information, there is often no definitive source of truth, instead being pieced together by collectors. The information above could very well be wrong in some areas, so if you know something different, please speak up, or hopefully edit the page.

12 Likes

My best guess for the Altro was a debut in 89. This is based on the PDFs I could find… same time as the 900 series.

3 Likes

From what I gathered Altro was released in 1988. as stylograph pen. A year before 900 series which is very interesting.
Altro pencil seems to come later in 1992.
